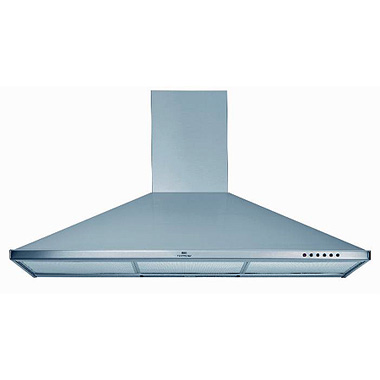

New World CHIM110 Stainless
Extract or recirculate with a New World range hood, and receive £30 discount when you order with your range.
Key features
Extracts or recirculates • Three speeds (push button controls) • Two integral lights • Three washable aluminium grease filters.
See Full Specification
 |
|
Delivered in 7-10 days (or later if preferred)
via a two person crew
|
|
|
|
Nominal Width:
110 cm |
|
|
|
Style:
Wall-mounted |
|
Main View |
 |
|
Room View |
|
|
|
|
|
|
|
Save £30 with each additional appliance ...
Add a hood, refrigerator, built in oven, built in hob, dishwasher or wine cooler to your built in oven and receive £30 discount for each additional appliance.
CHIM110 Stainless
Warranty: New World products are covered by a full 12-month parts and labour guarantee, supported by a nationwide network of fully qualified engineers.
| Product Specifications |
Please check any crucial information with the manufacturer, as details may change or errors occur. |
| Speeds |
3 |
| Maximum air capacity (IEC 61591 method - free air delivery) |
350 cubic metres per hour |
| Noise level |
48 Decibels |
| Maximum pressure |
250 PA |
| Maximum input |
190 W |
| Extracting |
12cm diameter ducting kit required (from B&Q or similar) |
| Recirculating |
Additional carbon filters required (call belling on 0870 458 9961) |
| Lights |
2 x 40W |
| Controls |
Push button control |
| Width |
1100 |
| Depth |
500 |
| Minimum height |
590 |
| Maximum height |
960 |
| Main canopy height (excl. chimney) |
260 |
| Chimney section width |
250 |
| Chimney section depth |
183 |
| Mounting height |
650 minimum (700-750 recommended) |
